1 1/4 in. Gen II Dripless Shaft Seal | Lasdrop G114-214

1 1/4 in. Gen II Dripless Shaft Seal | Lasdrop G114-214

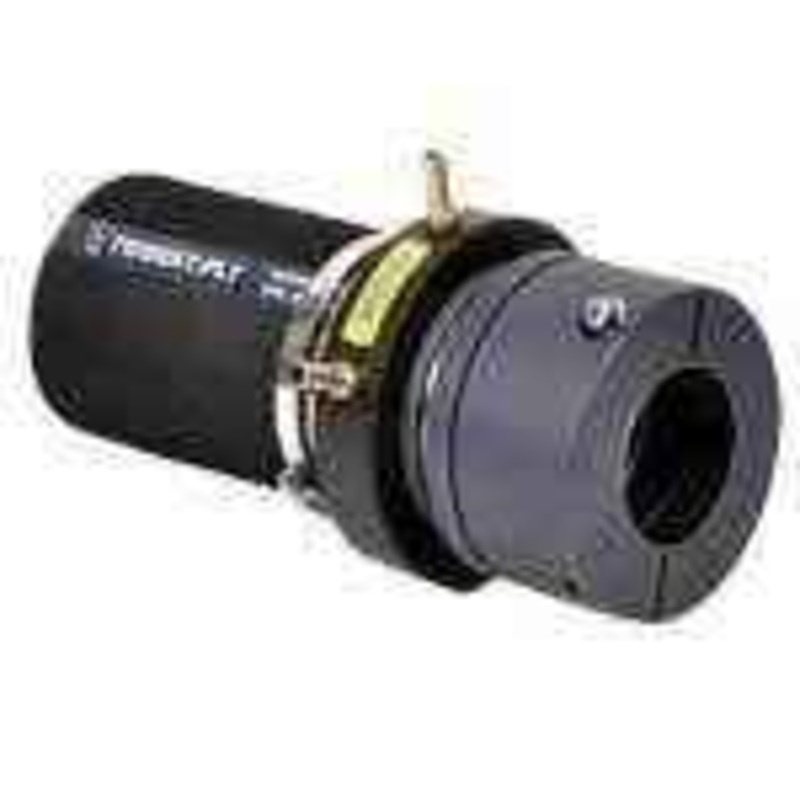

Lasdrop’s Gen II dripless prop shaft seal assembly replaces 1 1/4 in. shaft x 2 1/4 in. stern tube traditional style packing box to prevent water from entering into the bilge.

• Gen II Shaft Seal 1 1/4 in. Shaft
• 2 1/4 in. Stern Tube
• The Friction Ring assembly is mounted with a rigid connection hose and uses a carbon graphite sealing surface all encased by a durable copolymer housing
• Cutlass bearing ensures proper alignment to the shaft even if the shaft itself is not aligned
• The clamp pressure assembly secures the assembly around the shaft preventing galling or damage to the shaft that can occur with set screws
• The 316 stainless steel ring floats on the ball bearing drive system maintaining complete contact with the carbon graphite seal surface
• Seal ring features two rubber/fiber U-cup seals that rotate with the shaft and never wears out
• Hose barbs are constructed of solid brass and are coated to prevent corrosion
• Hose clamps are manufactured of 316 stainless steel with indentations rather than perforations providing twice the tensile strength and eliminating friction as in regular clamps
• Two hose clamps provide for each connection point
• Virtually no metal to metal contact eliminates the risk of electrolysis
