FCF Platinum Series Self-Contained Air Conditioner with Reverse Cycle Heat
10,000 BTU FCF Platinum Air Conditioner, 115V | Webasto 5011396A

• FCF Platinum Series Self-Contained Air Conditioner with Reverse Cycle Heat
• 10,000 BTU/hr Cooling Capacity
• 10,000 BTU/hr Heating Capacity
• 115V Operation at 60Hz
• Suggested Breaker 15A
• Rated Current 7.2A
• Starting Current 35A
• Comp. LRA 34A

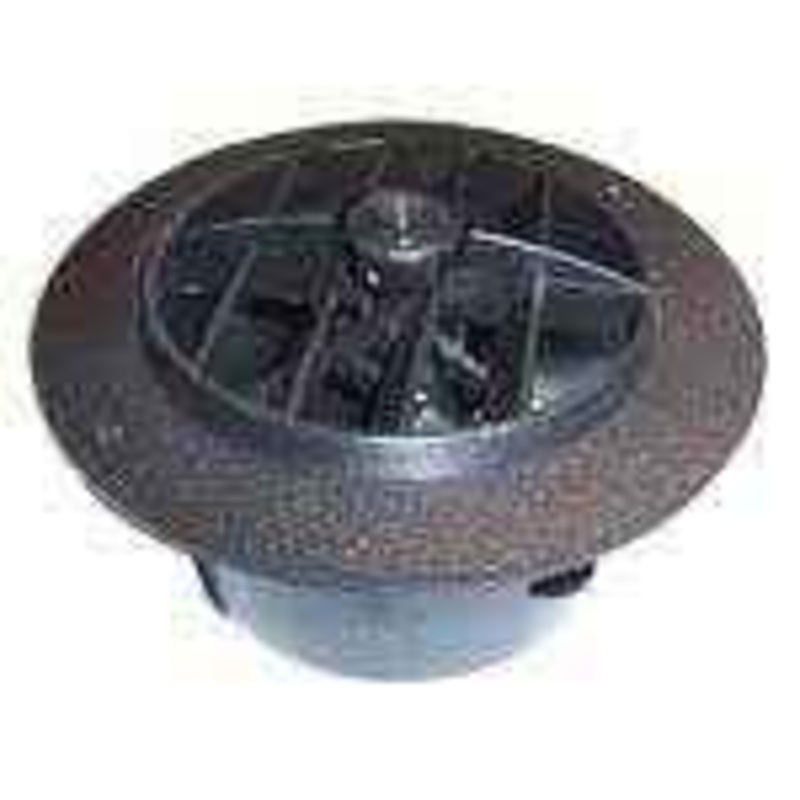

• Duct Ring 4 in.
• Rotatable Blower
• FCF Platinum Models are programmed with additional fan speeds for improved comfort and noise reduction
• Platinum programming automatically returns the fan speed to an ultra low speed when compressor shuts off
• No Minimum run time for compressor. Compressor shuts off as soon as set point is reached.

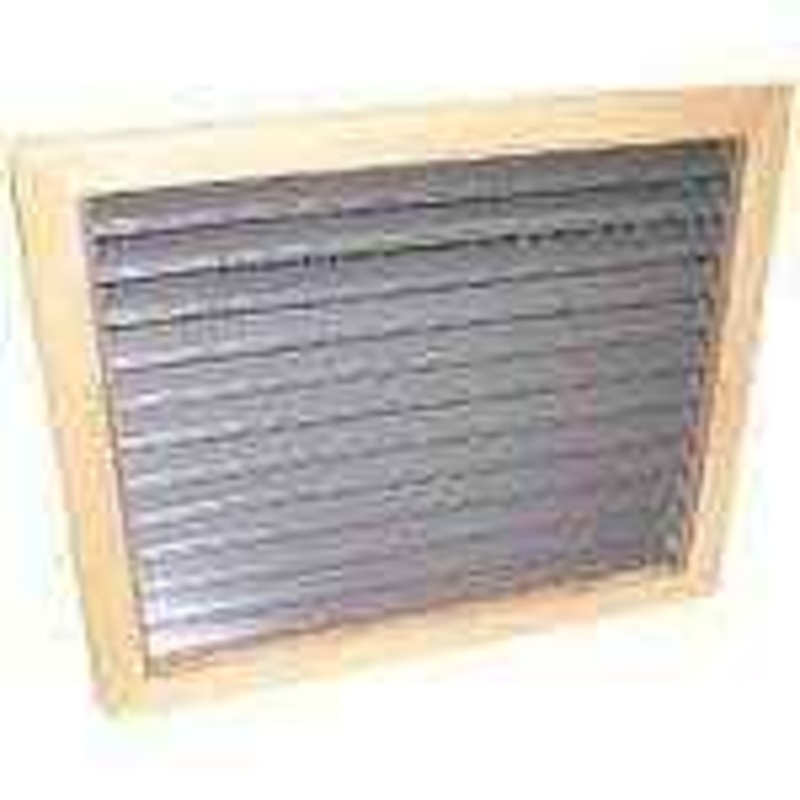

• Return Air Grille must be a minimum of 100 sq. in.
• Minimum Seawater flow at the AC unit is 1.6GPM
• 500GPH Continuous Duty Pump Suggested(sold separately)
• Seawater Inlet/Outlet .75 in. O.D.
• Drain Pan Outlet .625 in. O.D.
• Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately)
• AC unit dimensions(per manual*): 12.2 in.High(B*) X 14.96 in.Wide(A*) X 16.06 in.Deep(C*)
• Electric Box dimensions(per manual) : 12.68 in. X 12.76 in. 3.28 in.
• R410A Refrigerant
• Quiet operation with more power than other self-contained A/C systems on the market today
• Compressor has been carefully mounted to greatly reduce unwanted vibration and noises
• Epoxy painted stainless drain pan
• Digital display with control panel and cable are included
• Optional wireless FCF Remote Control is sold separately(5012610A)
• Backed by a limited 2-year warranty on parts and labor

!! Not Eligible For Free Shipping !!
