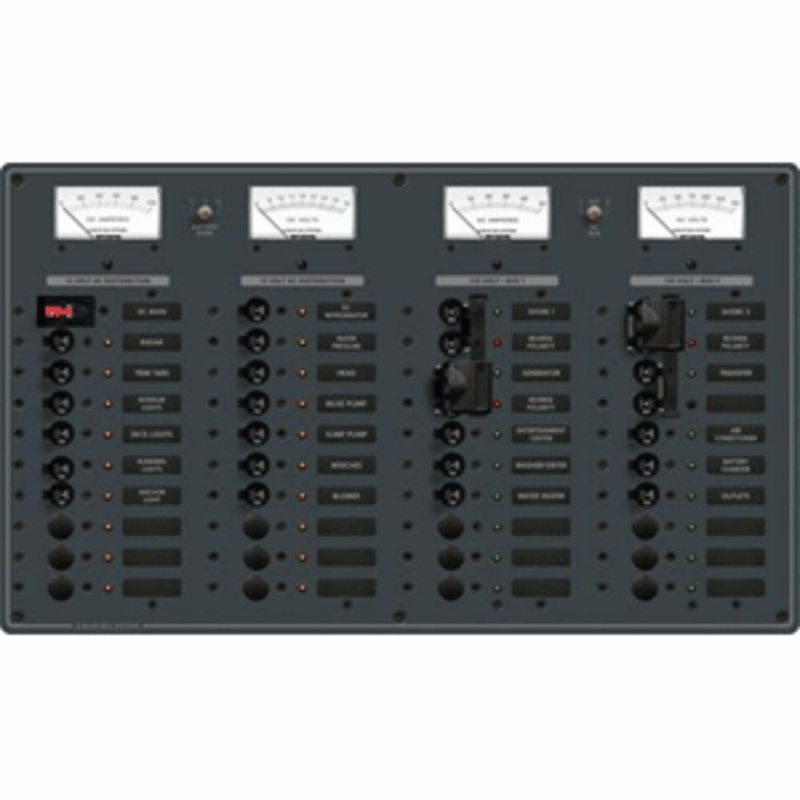

AC Main +12 Positions / DC Main +19 Positions

PN:3086
Black Switches

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage
  • 100 Amperes DC
  • 50 Amperes AC

AC Features

• Two separate AC load groups with transfer switch to combine into one load group
• Switch allows Ammeter and Voltmeter to read either AC load group
• Reverse polarity indicators on both AC load groups
• Ready for installation of optional 4031 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter
• 9630, 0-50 Amp AC Ammeter

DC Features

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter

Specifications:

• AC Positions: Source Selectors +12
• DC Positions: Main +19
• 120 Volts AC
• 12 Volts DC
• (4) 30A – (6) 15A AC Circuit Breakers
• (1) 100A – (13) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
