6010

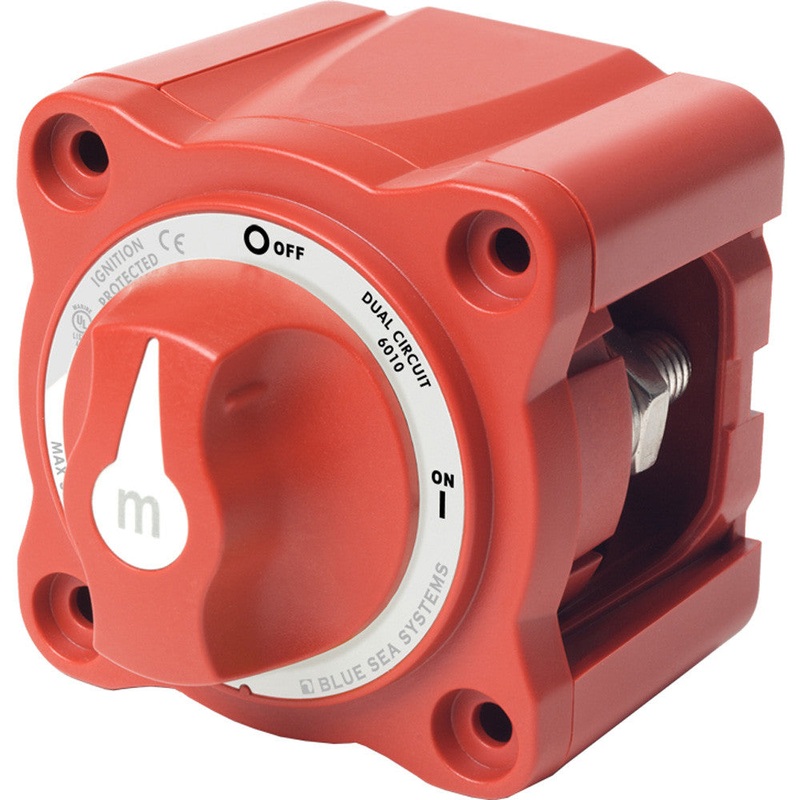

m-Series (Mini) Battery Switch

Dual Circuit

• Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch
• Switches circuits of different voltages, such as 12 volt and 24 volt, simultaneously with one simple ON/OFF switch

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 1
• Lockable: Yes
• Continuous Amperage: 600a
• Box Dimensions: 4″H x 4″W x 7″L WT: 1 lbs
• UPC: 632085060107
