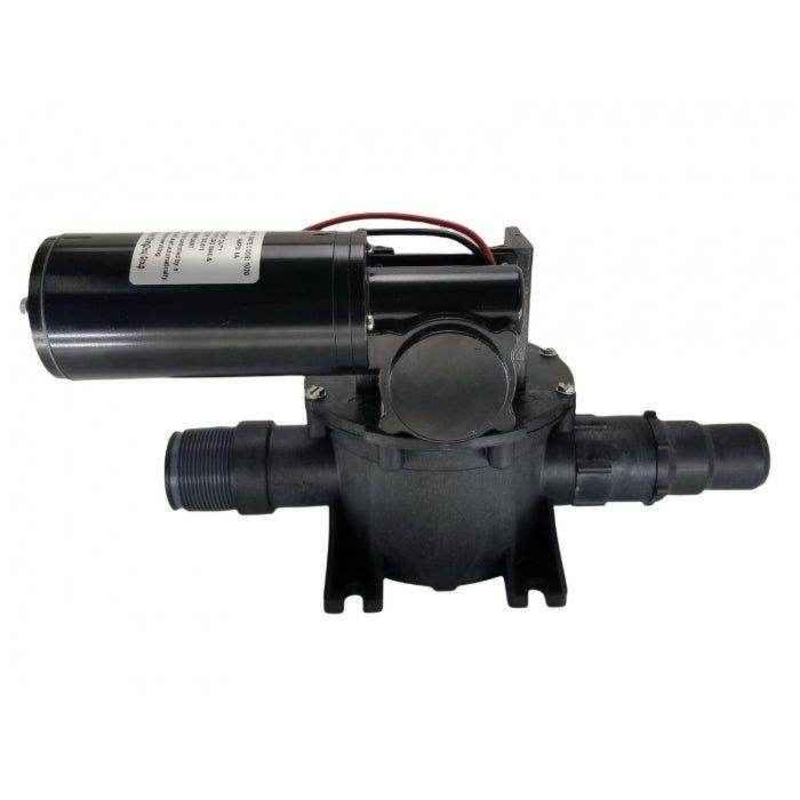

Replacement Vacuum Pump for VG4 Vacuum Generator, 12V | MMD Powerline 385311229

12 Volt JW Replacement Vacuum Pump for VacuFlush toilet systems which utilize a VG4 Vacuum Generator. Replacement pump mounts on top of solid white rectangular-shaped Vacuum Tank (VG4).

• Bellows style Vacuum Pump designed for use with Dometic VG4 Vacuum Generator
• Also referred to as J pump or JW pump
• 12 Volt DC Operation
• 10 Amp Fuse/Breaker Recommended
• Contains 4 Duckbill Valves which should be replaced every 3 years (385311581)
• Contains Pump to tank seal (385311213)
• Replacement Bellows Assembly: 385230980*
• Replacement Bellows Clamp: 385311226*
• Replacement O-Ring Kit: 385310151*
• 12 volt Replacement Motor Kit (*includes items above with asterisk): 385311423
• Replacement Vacuum Switch for VG4 Vacuum Generator: 385311216
• Runs dry without damage
• Discharge Port: 1-1/2 inch barb
• Inlet Port: 1-1/2 inch NPT
• WARNING: Pump starts automatically when wired to Vacuum Switch. Disconnect Power before servicing
