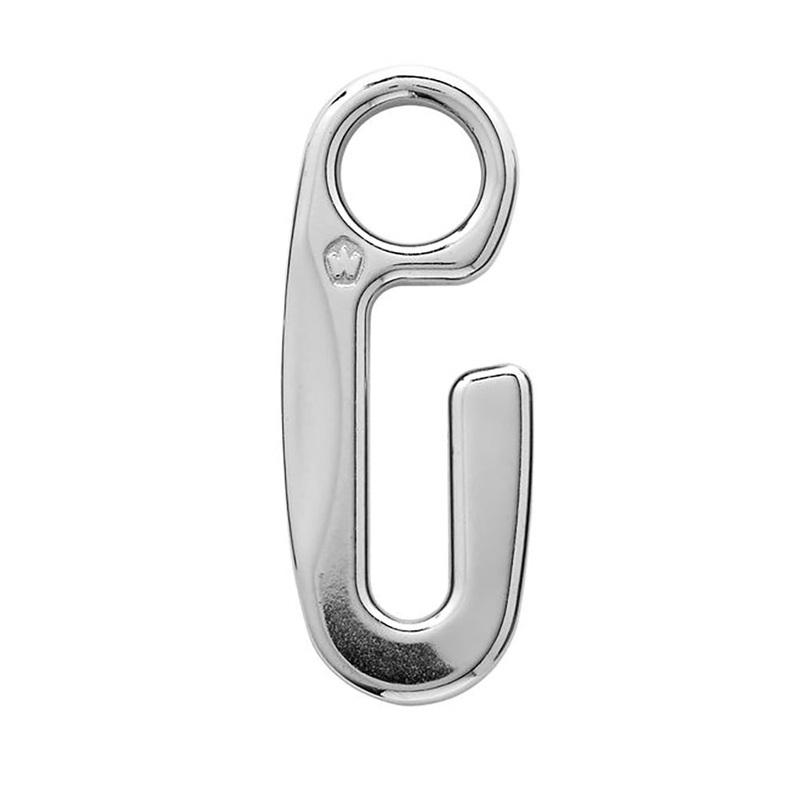

Chain Grip – For 10mm Chain – 3/8″ – 103mm Length – 4-1/16″

Features:

• For a 10mm chain
• Perfect for ensuring safe anchoring by easing the tension on the anchor chain
• Protects the boat by reducing the chafe of the chain on the rub rail and roller chock
• Positioned between two links of the chain (single-handed operation)
• Optimized design to avoid accidental release of the chain
• One piece with nonmoving parts
• Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance)

Applications:

• Mooring

Specifications:

• Materials: Duplex stainless steel grade

Dimensions:

• Rope size: (mm) 22
• Length: (inch) 4 1/16″ / (mm) 103
• Working load: (lb) 1580 / (kg) 720
• Breaking load: (lb) 2820 / (kg) 1280
• Weight: (lb) 0.344 / (g) 156

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
